Nauta Mixer

Ours precisely and technologically developed the range of Nauta Mixer is superiorly utilized in divergent industries for precisely and quickly mixing the materials like granules, wet suspensions, pastes, and powder. We have developed this mixer range cautiously by making use of optimum grade stainless steel and carbon steel along with the execution of sophisticated technologies ensuring excellent mixing outcomes and full discharge. As per the industrial processing requirement, this mixer can be incorporated with high speed cutting rotors and deagglomeration. Our offered mixers are integrated with spiral mixing tools, which give three-dimensional flow to the mixing materials by generating spiral upward motion on the periphery and downward flow in the center.

Features

  • Homogenous mixing
  • Equipped with single top bearing to ensure excellent mixing device driving
  • Spiral mixing tool allows 3-dimensional flow of mixing material
  • Quick material mixing
  • Low power consumption
  • Easy to clean

Product Specification

  • Capacity: 5000 liter to 25000 liters
  • Brand: PMI
  • Design Type: Customized

Applications

  • Food products
  • Chemicals
  • Paints
  • Minerals
  • Pharmaceuticals
  • Dry powders


Yes! I am interested

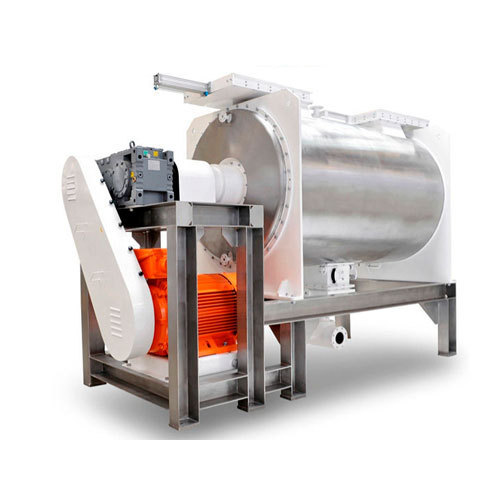

Plough Shear Mixers

The technologically developed Plough Shear Mixers are superlatively utilized for quickly mixing powders and granules with or without adding the liquids and pastes having low viscosity. These mixers are prudently developed from optimum grade raw materials and advanced techniques along with the incorporation of cylindrical shell fitted with ploughs. The hurling and whirling 3-D effect is generated by cylindrical shaft assists in mixing the material efficiently. Our mixer machine is also amalgamated with lump breakers at the bottom of cylinder for breaking agglomerates and lumps. These mixers have plough sheers and choppers, which make sure raw materials movement in lateral, radial and longitudinal direction.

Features

  • Quick material mixing
  • Short retention time
  • Changeable rotation speed
  • Equipped with wear proof plates for abrasive products
  • Protective treatment of mixing materials
  • Excellent material mixing with hurling and whirling

Product Specification

  • Capacity: 100 - 7500 L
  • Model: 00087
  • Power: 2 - 125 hp

Applications

  • Chemicals
  • Food products
  • Coatings
  • Pharmaceuticals
  • Feed stuffs
  • Animal feed
  • Pesticides
  • Cosmetics
  • Building materials
  • Metals
  • Fertilizers


Yes! I am interested

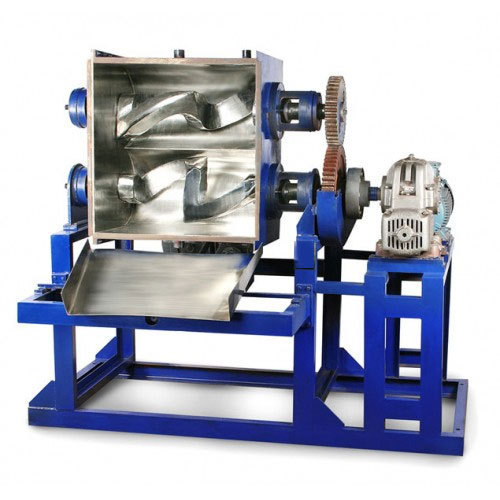

Sigma Mixers

Our sophisticatedly designated Sigma Mixers are superlatively used in pharmaceutical, soap, chemical and food industry for mixing and blending the materials having high viscosity. This mixer range is developed from the best grade stainless steel and carbon steel along with the employment of most sophisticated techniques ensuring superior mixing and durability. These mixers are comprised of kneaders accomplished with different blades, which mix the materials perfectly with its rotational efficiency at variable speed in opposite directions.

Features

  • High working capacity varying between 5 liters and 3000 liters
  • Wear proof liner plates are superior for abrasive products
  • Equipped with helical reduction gearbox and reduction gearbox
  • Low power consumption
  • Capable of mixing and kneading viscous material

Applications

  • Liquid soap
  • Chemicals
  • Food items
  • Feed stuffs
  • Pharmaceutical products


Technical Specifications

Models Specification Parameters
Total Volume (m3) Power(KW) Speed rpm L W H Weight
PMI SM-0.1 100 3 3 1008 758 615 330
PMI SM-0.3 250 4 3 1550 812 1015 780
PMI SM-0.5 500 5.5 3 1675 1142 1300 955
PMI SM-1 1000 11 ' 1970 1450 1550 1400
PMI SM-1.5 2000 11 3 2500 1650 1810 2500
PMI SM-2 3000 18.5 3 2880 1896 2055 3300
PMI SM-4 5000 22 3 3000 1950 2200 3600
PMI SM-5 6000 22 3 3200 2000 2350 4000
PMI SM-8 8000 37 3 3450 2200 2500 4450
PMI SM-10 10000 75 ' 3740 2450 2750 5000
PMI SM-15 15000 37 3 3950 2600 2900 5500
PMI SM-20 20000 45 3 4200 3000 3200 5800


Yes! I am interested
