Home » Products » Mixers

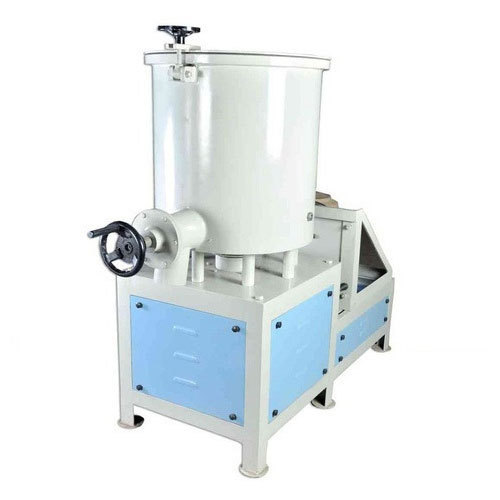

High Speed Mixers

We have designated a quality assortment of High Speed Mixers, which is superiorly used in divergent industries for mixing powders, pastes, pigments and granules with the proper addition of liquid. These mixers are developed sturdily by making use of optimum stainless steel and mild steel along with the employment of sophisticated techniques. The mixer has qualitative lid opening arrangement system and pneumatic controlled powder discharge system.

Features

  • Quick material mixing
  • Energy efficient
  • Homogenous blending
  • Moisture free mixing at variable temperature range

Product Specification

  • Capacity: 200 to 500 kg
  • Power Source: Electric
  • Phase: 3

Applications

  • Granules
  • Powder
  • PVC
  • Dry blending


Specifications

High speed mixers range from:
  • 50kg
  • 20kg
  • 100kg
  • 240kg
  • 75kg


Technical Specifications

Models Specification Parameters
Mixing Capacity(kg) Power(KW) Speed rpm I/D H Screw Dia
PMI HSM-200 200 2.2 360 1000 1500 200
PMI HSM-500 500 3 360 1100 2400 200
PMI HSM-1000 1000 4 360 1400 2850 200
PMI HSM-1500 1500 4 360 1750 3200 260
PMI HSM-2000 2000 5.5 360 2000 3800 260
PMI HSM-3000 3000 7.5 360 2260 4360 310
PMI HSM-5000 5000 11 360 2600 4360 310
PMI HSM-6000 6000 11 360 2600 5300 330
PMI HSM-8000 8000 18.5 360 3000 5300 330
PMI HSM-10000 10000 18.5 360 3450 5700 400
PMI HSM-15000 15000 22 360 3800 6000 400
PMI PSM-20000 20000 22 360 4250 6400 400


Yes! I am interested

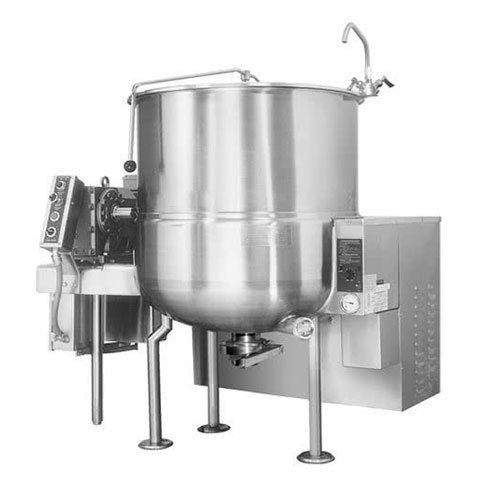

Jacketed Mixers

A jacketed Mixer is a container that is designed for controlling the temperature of its contents, by using a cooling or heating "jacket" around the mixer through which a cooling or heating fluid is circulated.

A jacket is a cavity external to the mixer that permits the uniform exchange of heat between the fluid circulating in it and the walls of the Mixer. We design the several types of jackets according to product requirement and compatibility.

Jackets can be applied to the entire surface of a mixer or just a portion of it. For a vertical mixing vessel, the top head is typically left unjacketed. Jackets can be divided into zones, to divide the flow of the heating or cooling medium.

Features

  • Gentle mixing for sensitive materials without generation of heat
  • High heat transfer rate, ideal for heating or cooling process of the powders
  • Easy to clean in either dry or wet way.

Product Specification

  • Motor Speed: 1500 RPM
  • Phase: 3
  • Voltage: 415 VAC


Yes! I am interested

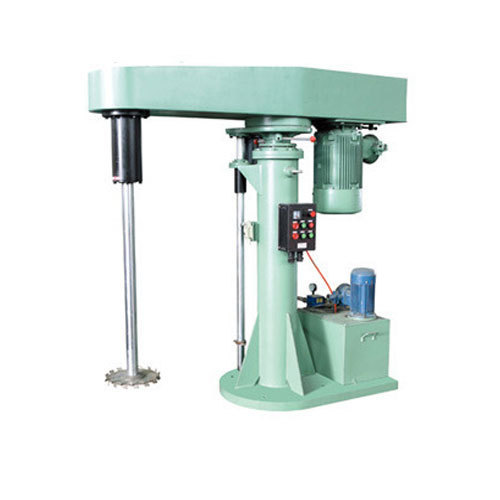

High Speed Disperser

The High Speed Disperser is suitably utilized in divergent industries for dispersing various materials. These dispersers give superior result for products having several hundred thousand centipoises in the combination of multi-shaft mixers. This disperser is incorporated with air/oil hydraulic lift, modifiable mix can lock mechanism, safety switches, V-belt drives & bearings and explosion proof invertor duty motors to make sure exceptional dispersion of different materials.

Features

  • Excellent dispersion
  • Precise speed variations as per materials’ viscosity, solid contentment and aeration control
  • Equipped with a hydraulic lift to ensure proper batch turnover

Product Specification

  • Capacity: 200 to 500 kg
  • Power Source: Electric
  • Phase: 3

Applications

  • Chemicals
  • Emulsion
  • Printing inks
  • Paints
  • Putty
  • Primer
  • Distemper
  • Adhesives
  • Composites
  • Coatings
  • Plastics


Yes! I am interested
