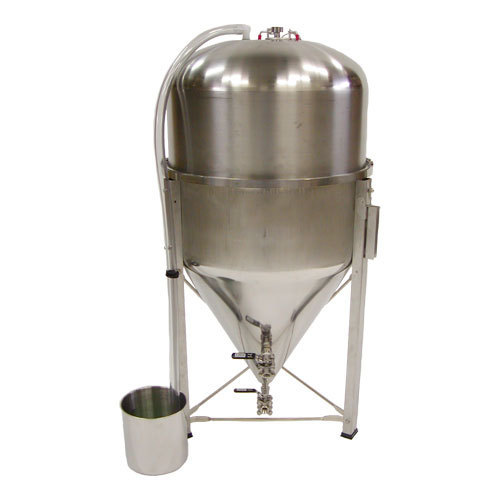

Fermenter

Product Details:

We are engaged in developing quality Fermenter that transforms organic matter into alcohol and acidic goods, such as alcoholic beverage, honey, short mead. It is made of stainless steel as many of the fermentations processes produce acid. The interior of our fermenter can be easily monitored by sterilisable probes that record temperature, pressure, stirrer speed, pH, oxygen, and carbon dioxide levels. Here, the incoming air is filtered and pumped into the base of the fermenter and valve releases the pressure from the top of the tank.

Features

• Economical method of getting important fermented foods
• Controls temperature efficiently
• Keeps chambers anaerobic to optimize conditions for desired microbial fermentation
• Superior quality of stainless steel is employed

Applications

• Alcoholic industry
• Sewage plants
• Coffee industry

Specifications:

• Inner shell: 304 stainless steel, thickness 3mm, mirror polished
• Glycol jacket: 304 stainless steel, thickness 2mm, dimple welded
• Outer cladding: 304 stainless steel, thickness 2mm, brushed finished
• Dual-zone dimple cooling jackets (2 or more on larger tanks)
• Side manway, shadowless
• Dry hop port/cap
• Adjustable Feet
• 2” Polyurethane insulation
• Come with High-quality fittings & valves:
• 1 x 14.7psi PRV(Pressure Relief &Vacuum Valve),
• 1 x SS304 Oil-filled Pressure Gauge/adapter,
• 1 x Thermowell/Thermometer,
• 1 x Sample Valve,
• 1x Racking arm,
• 2x Butterfly valves,
• 1x CIP ball/Arm,
• Clamps, Enough and Spare Gaskets etc,
