Product Details:
Minimum Order Quantity | 1 unit |
Capacity | 100 ltr to 10000 ltr |
Model Name/Number | pmi/oct |
Usage/Application | power to powder , powder with liquide spray |
Material | ss ms |
Automation Grade | Semi-Automatic |
Voltage | 415 v |
Phase | 3 phase |
Size | custmise |
Motor Power | as per design |

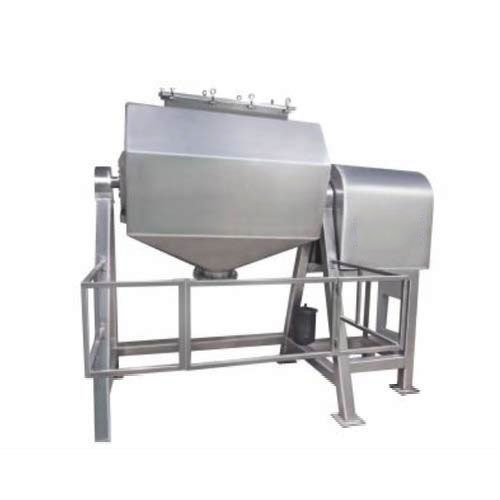

Our offered range of qualitative Octagonal Blenders is highly suitable for precise mixing and lubrication of dry granules homogenously. This blender is developed from finest quality raw materials in octagonal container shape to make sure exceptional blending of granular and crystalline materials at low speed. The octagonal shape of the container allows granules to come from each side and this makes a lesser requirement of high RPM.
Features
Applications
Technical Specifications:
Models | Specification Parameters | |||||
Working Capacity(LTR.) | Power(HP) | L | W | H | Disch. valve size | |
PMI 03-0.1 | 300 | 3 | 2000 | 1100 | 2000 | 6" |
400 | 5 | 2100 | 1200 | 2100 | 6" | |
PMI 03-0.6 | 600 | 7.5 | 2300 | 1400 | 2300 | 6" |
PMI OB-1 | 800 | 7.5 | 2350 | 1800 | 2350 | 6" |
PMI OB-1.8 | 1000 | 10 | 2400 | 1900 | 2400 | 6" |
PMI 03-2.4 | 1500 | 10 | 2500 | 2000 | 2500 | 6" |
PMI 03-3 | 2000 | 18.5 | 2550 | 2000 | 2550 | 6" |
PMI OB-3.6 | 4000 | 18.5 | 2650 | 2100 | 2650 | 8" |
PMI 03-5 | 5000 | 79 | 2800 | 9900 | 2800 | 8" |
PMI 03-6 | 8000 | 30 | 3000 | 2400 | 3000 | 8" |
PMI OB-9 | 10000 | 45 | 3200 | 2500 | 3200 | 8" |
PMI OB-12 | 15000 | 45 | 3400 | 2600 | 3400 | 10" |
PMI OB-18 | 20000 | 55 | 3800 | 2800 | 3800 | 10" |
Product Details:
Minimum Order Quantity | 1 onwards |
Capacity | 5 Liters And 5000 Liters |
Usage/Application | Industrial |
Material | Stainless Steel |
Phase | 3 Phase |
Automation Grade | Automatic |
Voltage | 440V |
Frequency | 50-60Hz |
Brand | PMI |
Country of Origin | Made in India |

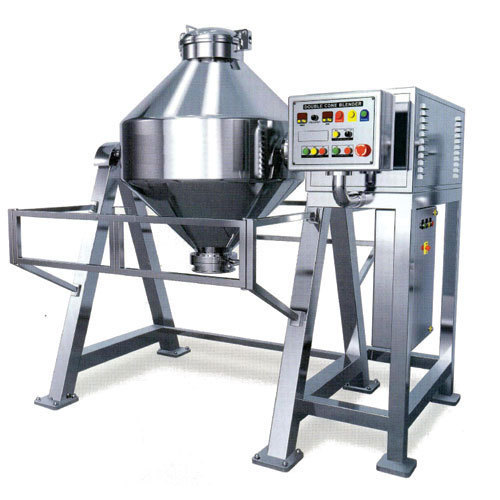

Incorporated with most advanced techniques, the Double Cone Blenders are superlative for mixing dry powder and granules homogeneously The blender is highly preferable in a number of industrial blending applications due to its easy functioning, cleaning, discharging and contamination absence. These blenders are designed in slant double cone design by making use of optimum grade materials and sophisticated techniques to make sure excellent dead spot elimination. It is integrated with no moving blades, which minimizes the particle's size reduction during blending.
Features
Applications
Technical Specifications
Models | Specification Parameters | |||||
Working Capacity(ltr.) | Power(HP) | L | W | H | Disch. valve size | |
PMI DC-0.1 | 100 | 2 | 1400 | 800 | 1500 | 150 |
PMI DC-0.3 | 200 | 3 | 1850 | 900 | 1900 | 150 |
PMI DC-0.6 | 300 | 5 | 2000 | 1100 | 2000 | 200 |
PMI DC-1 | 400 | 5 | 2100 | 1200 | 2100 | 200 |
PMI DC-1.8 | 600 | 7.5 | 2200 | 1300 | 2200 | 200 |
PMI DC-2.4 | 1000 | 75 | 2300 | 1400 | 2300 | 200 |
PMI DC-3 | 2000 | 10 | 2500 | 1800 | 2500 | 200 |
PM( DC-3.6 | 4000 | 10 | 2650 | 2100 | 2650 | 300 |
PholI DC-5 | 5000 | 18.5 | 2800 | 2200 | 2800 | 300 |
PMI DC-6 | 10000 | 22 | 3000 | 2400 | 3000 | 300 |
