Home » Products » Blenders

Blenders

We have a quality collection of Blenders, which is idyllically utilized for mixing a large quantity of solids, granules and powder homogenously. These blenders are sturdily designated from the optimum quality raw materials and advanced techniques to make sure even blending of the materials by moving them in distinguished ways. Our product range is extensively renowned for its unique attributes including precise material mixing, dust proof construction, special shaft sealing, flame protected motor, quick material mixing and easy cleaning. The blenders are ideally used for blending products like fire retardants, resins, dyes, pharmaceuticals, chemicals, food, adhesives and milk powder.

Features

  • Capacity: Customized
  • Brand: PMI
  • Model: 0025
  • Design Type: Customized
  • Motor/ no. of motor: 15 hp

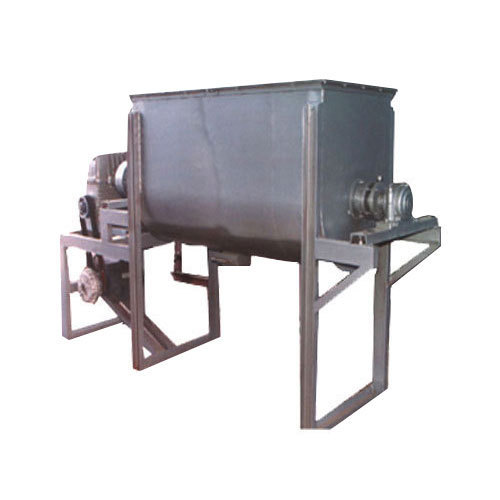

Ribbon Blenders

The Ribbon Blenders offered by us are technologically designed to make them useable with dry materials, nevertheless liquid and gas stream can be added. These blenders are developed by using optimum grade stainless steel, carbon steel and alloys along with the incorporation of transmission parts, U-shaped cylinder and double ribbon agitators. In this processing of blending the material by rotation, the outer ribbon pushes the materials from both ends to the centre and at the same time, the inner ribbon pushes material from centre to both ends. The blending machines have ribbon wind with divergent angles that allow the materials to be carried out in different directions. With the continuous convective circulation, the materials get sheared and mixed thoroughly and rapidly.

Features

  • Dust proof design
  • Product temperature can be measured
  • Equipped with agitator for centre discharge
  • Manually operated or pneumatic operated flap valve
  • Equipped with worm reduction gearbox
  • Accomplished with single speed drive
  • Squirrel cage, three phase induction motors idyllic for 415 volts, 50 HZ
  • Working capacity ranges between 5 liters and 30000 liters

Applications

  • Epoxy resins
  • Pharmaceuticals
  • Chemicals
  • PVC
  • Fire retardants
  • Bakery premixes
  • Dyes
  • Abrasives
  • Food items


Designs available for ribbon blenders

  • Vacuum or pressure construction
  • Spray nozzle for liquid introduction
  • Lump breakers for solid material size reduction
  • Horse power suitable for high density material
  • Sanitary type construction
  • Provided with cover openings
  • Accomplished with spherical and flush type ball discharge valve

Technical Specifications

Models Specification Parameters
Working Capacity(m3) Working Capacity(kg) Power(KW) Speed(RPM) L W H Weight
PMI RB-0.1 0.18 200 4 41 2280 680 880 550
PMI RB-0.3 0.3 300 5.5 41 2670 780 1240 900
PMI RB-0.6 0.6 600 11 33 3140 980 1400 1600
PMI RB-1 1.2 1200 15 33 3860 1200 1650 2700
PMI RB-1.8 1.8 1800 18.5 33 4460 1300 1700 3600
PMI RB-2.4 2.4 2500 22 27 4950 1400 2000 4200
PMI RB-3 3 3000 30 27 5280 1550 2100 5100
PMI RB-3.6 3.6 3600 37 27 5530 1560 2200 5600
PMI RB-5 4.8 4800 45 22 5100 1720 2500 6500
PMI RB-6 6 6000 45 22 5610 1750 2650 7800
PMI RB-9 9 9000 55 14 5820 2000 2900 11000
PMI RB-12 12 12000 75 14 6060 2350 3160 13000
PMI RB-18 18 15000 110 12 6200 2500 3350 16000


Yes! I am interested


Conical Blenders

Our Conical Blenders incorporated with a conical vessel accompanying a double start helix ribbon mounted on a central shaft are superiorly used for mixing, homogenizing and granulation applications. Developed from carbon steel, special alloys and stainless steel, the blenders are suitable for mixing bulk powder volumes, dry & moist powders, slurries and wet cakes. Our blenders can be operated at variable ribbon speeds to adjust mixing time according to the requirement. The blenders have bottom fully open, which assists in discharging the product quickly.

Features

  • Excellent eradication of product contamination
  • Can blend gently with low shear forces
  • Equipped with ribbon agitator for centre discharge
  • Developed specifically for atmospheric operation
  • Variable or single speed drive
  • Easy cleaning

Applications

  • Food
  • Chemicals
  • Adhesives
  • Pharmaceuticals
  • Dyes
  • Powder blending
  • Pigments
  • Cosmetics
  • Battery
  • Pesticides
  • Plastic granules


Designs Availability

  • Horse power to suit higher density material
  • Spray nozzles for liquid introduction
  • Continuous ribbon agitator for end discharge and interrupted ribbon for high density materials
  • For heating and cooling, the blender is provided with limplet, dimpled and baffled jackets

Technical Specifications

Models Specification Parameters
Total Volume(m3) Mixing Capacity(kg) Power(KW) Speed(R/m) Diameter Height Weight
PMI CM-0.1 0.1 50 1.5 02/01/08 800 1500 500
PMI CM-0.2 0.2 95 2.2 02/01/08 890 1850 600
PMI CM-0.3 0.3 135 2.2 02/01/08 970 1920 660
PMI CM-0.5 0.5 200 3 02/01/08 1160 2250 800
PMI CM-1 1 400 4 02/01/08 1450 2700 1200
PMI CM-1.5 1.5 500 5 2.0/57 1600 3200 1500
PMI CM-2 2 760 5.5 2.0/57 1850 3450 1800
PMI CM-3 3 1140 7.5 1.8/57 2050 3930 2400
PMI CM-4 4 1600 11 1.8/57 2260 4210 3000
PMI CM-5 5 2000 12 1.8/57 2400 4400 3200
PMI CM-6 6 2400 15 1.8/57 2450 4948 3500
PMI CM-10 10 4000 18.5 1.8/57 3020 5820 7000
PMI CM-15 15 6000 30 1.8/57 3440 6540 10000


Yes! I am interested
